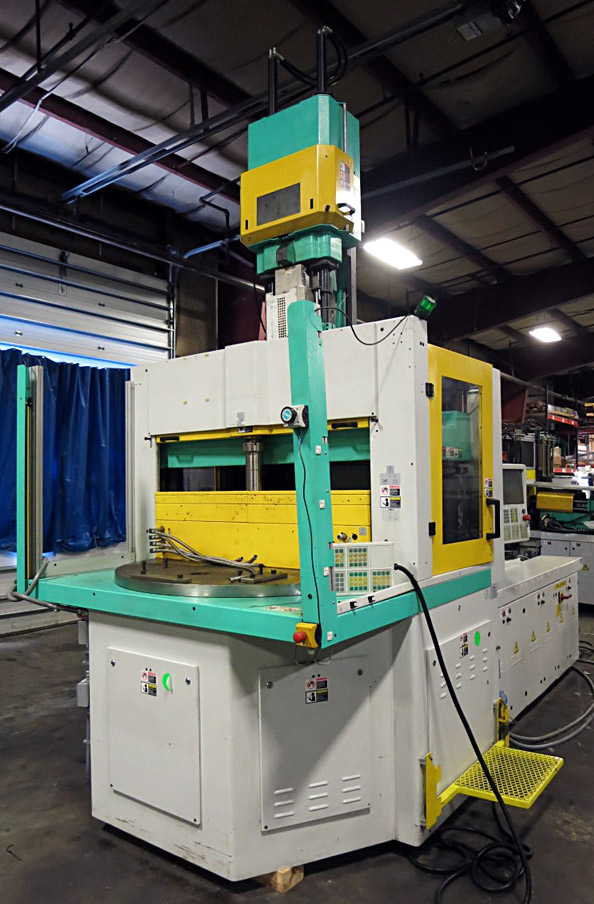

309 ton Arburg Vertical Rotary - Installed new in 2011 - Model 1500T 2750-800 - 15.3 oz. shot
ref # A2825CPH
| Clamp Tonnage | :::: | 309 tons US |
| Table Diameter | :::: | 59" |
| Mold Height | :::: | 21.6"min / 33.4"max |
| Opening Stroke | :::: | 11.8" |
| Electrics | :::: | 230 Volt / 460 Volt |
| Max Daylight | :::: | 33.4" |
| Shot Size | :::: | 15.3 oz. (55mm) |
| Equipped With: |
| Selogica Controller 16,210 Automatic Hours Euromap 67 With Euromap 12 Adapter Multiple Robot Interface Outlets 8 Inputs and Outputs 2 Additional Inputs and Outputs On Rotary Table 450 Degree Celsius High Heat Option Host Interface 18 Zone Mold Heating Nozzle Shut Off Corepull 1, 2 on Table, 3,34 on Table, 5,6 on PI Airblow SPI Interface Up To 5 Devices Rotary Table |
Mention Ref # A2825CPH
