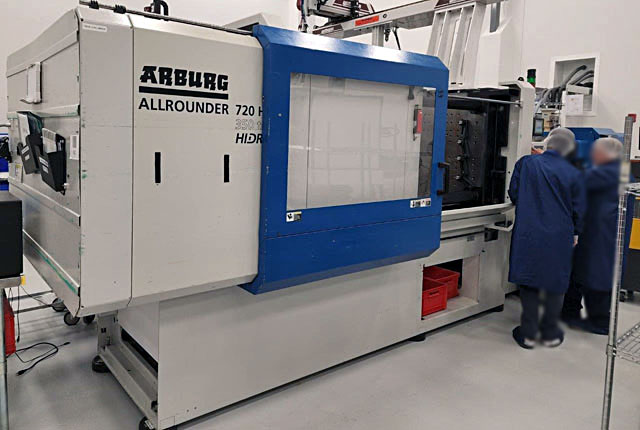

359 ton Arburg - Installed new in 2011 - Model 720H 3200-2100 - 34.7 oz. shot
ref # A1655BPH
| Clamp Tonnage | :::: | 359 tons US |
| Tie Bar Distance | :::: | 28.34" x 28.34" |
| Platen Size | :::: | 40.9" x 40.9" |
| Mold Height | :::: | 11.8"min / 31.5"max |
| Daylight | :::: | 35.46"min / 55.16"max |
| Shot Size | :::: | 34.7 oz. |
| Voltage | :::: | 460 volt/3/60 |
| Equipped With: |
| Selogica Controller High Speed Accum. Assist Injection Airblow Corepull 1 Additional Heat Control Circuit Screw Positioning Nozzle Shut-Off 4 Programmable Inputs & Out Puts Interface for Color Feeder Control Expansion Later Int. Signals RJG Level 2 Ready Kit Robot Interface - Euromap 12 or 67 Hours 40,097 hrs |
Mention Ref # A1655BPH
