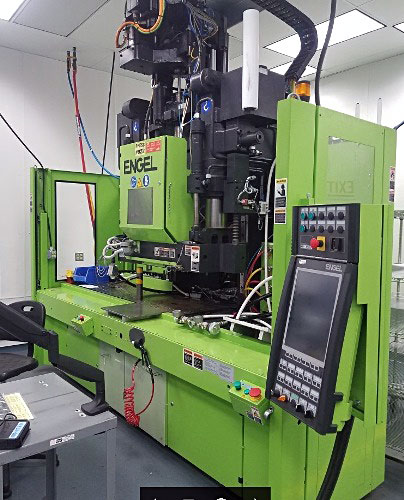

90 ton Engel Vertical Shuttle LSR - Installed new in 2010 - Model INSERT200VE-90 - 2.2 oz. shot
| Clamp Tonnage | :::: | 90 tons US |
| Mold Height | :::: | 8.01"min/21.89"max |
| Shuttle Table Stroke | :::: | 43" |
| Ejector Stroke | :::: | 4.99" |
| Clamp Stroke | :::: | 13.8" |
| Centerline | :::: | 72.8" |
| Shot Size | :::: | 2.2 oz. |
| Electrics | :::: | 480 volt/3/60 |
| Floor To Shuttle Tbl | :::: | 34.06" Height |
| Equipped With: |
| Vertical Clamp/Vertical Injection with 2 Position Shuttle Table Electric Injection Unit with Servodrive Eco Drive (Servo Pump) LSR Package - Fluid Automation Water Cooled Shut-Off Nozzle - Bi-Metallic (M3) Barrel with Water Cooling 16:1 L/D - Nitrided (S1) Screw with Spring Loaded Check Disk for LSR -LSR Pressure Transducer with on Feedthroat with Screen Readout -LSR Material Shut-off Valve 1/2" - Preparation for LSR Filter Pack Minicam Micrograph Microplast PD-Log Ecograph "Vert Mould Program" 12 Zone Mold Heating Control with Additional Temp Control Cards Transformer for Hear Zones Access Rights with Key Card Low Usage - Only 1,486 Hours! |
