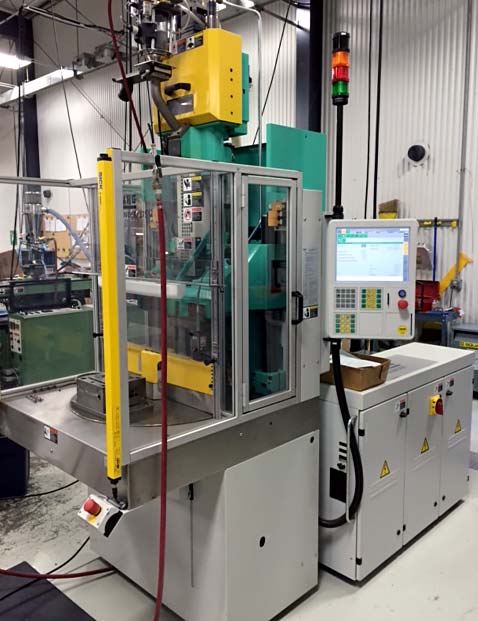

28 ton Arburg Vertical Rotary - Installed new in 2010 - Model 275V-250-70 - 0.74 oz. shot - Selogica Controller - Only 3,500 Hours!
| Clamp Tonnage | :::: | 28 tons US |
| Table Diameter | :::: | 29.52" |
| # of Stations | :::: | 2 |
| Ejector Stroke | :::: | 2.36" |
| Clamp Stroke | :::: | 8.86" |
| Max Daylight | :::: | 17.83" |
| Shot Size | :::: | 0.74 oz. (18mm) |
| Mold Height | :::: | 5.04"min/8.58"max |
| Pump Motort | :::: | 10 HP |
| Equipped With: |
| Selogica Direct Controller Printer interface Position regulated screw Optical barrier at insertion station Parting line injection adapters Compact flash interface Air blow Acoustic alarm Pneumatic corepull Flashing light alarm Low usage…only 3,500 hours! 460V motor, 230V heaters |
